How to make electricity more expensive: build 1,000MW of random generation which needs expensive back up and an undersea cable too.

Tom Quirk and Paul Miskelly noticed that the team selling the new “largest wind farm in the Southern Hemisphere” on Robbins Island are claiming it will help stabilize the supply of intermittent power in Australia. Instead it’s likely to do the opposite. This is the same 1GW wind farm that even Bob Brown, former Greens leader, doesn’t want. An eagle-chopping eyesore.

UPC Renewables are claiming the correlation between the Tasmanian Robbins Island output is “very low” compared to the wind farms in Victoria. It would be nice if only it were true. Instead they apparently got their r mixed up with their r2 — and incorrectly claim the correlation is low when actually its dangerously high. I say “dangerous” because it’s a danger to the NEM — the national grid. The last thing we need is 1,000MW of useless extra energy that arrives when all the other useless energy arrives — exacerbating the ups and downs — driving the efficient baseload providers out of business even faster, and leaving the nation with an expensive headache and sitting on a knife edge of frequency hell.

And there’s no point (or any profit) without a second undersea interconnector, so who’s paying that bill? It’s being sold to the taxpayer as a necessary bit of infrastructure for the forced transition (that we didn’t need in the first place). All so UPC investors can make money.

Jo

____________________________________________

Tasmania – Australia’s offshore wind farm?

Guest post by Tom Quirk and Paul Miskelly

Is it possible that Tasmania could become Australia’s offshore wind farm? A proposal by UPC Renewables[1] [1] an international developer of wind farms, suggests that a 1000 MW wind farm could play on important role in moderating the intermittent supply of electricity from renewable resources.

UPC wants to construct what would be one of the largest wind farms in the world on Robbins Island, near Cape Grim in northwest Tasmania. There are two wind farms in the north of Tasmania that are part of the Australian Energy Market (AEM). These are Woolnorth to the west and Musselroe to the east. These and the proposed site on Robbins Island are shown in Figure 1 with the Victorian wind farm at Bald Hills, the closest mainland wind farm to Tasmania and along with the Basslink connection that joins the Tasmania grid to the grid in Victoria.



Wind farm, Tasmania, Robbins Island. Map.

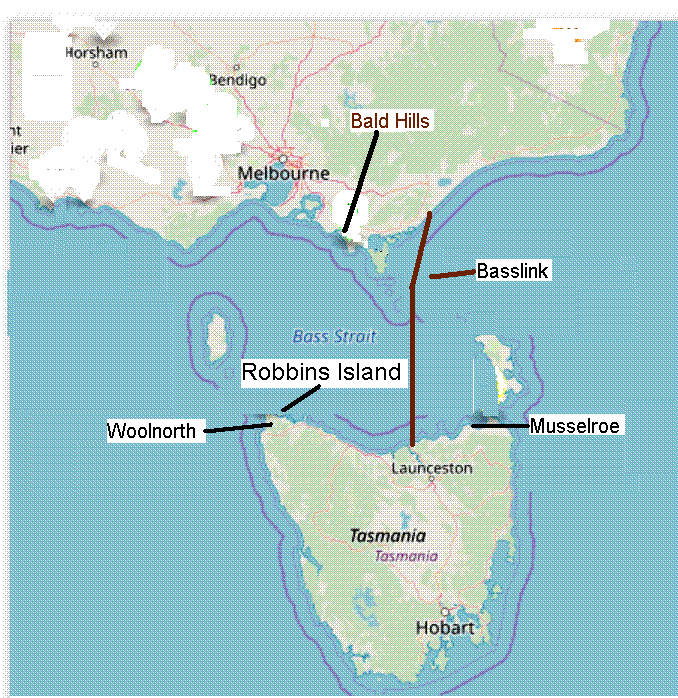

Figure 1: Layout of operating and proposed wind farms in Tasmania, along with Basslink and Bald Hills in Victoria.



At present Tasmania with hydropower, wind farms and the Basslink connection has enough energy available for its own needs and is also able to supply surplus energy to Victoria as Basslink has a capacity of 400 MW, and for short periods of up to 4 hours, 630 MW. However adding 1000 MW potential of the new wind farm will require not only a transmission line from Robbins Island to the Basslink terminal near Launceston but also an additional 500 MW link to Victoria.

The key question is what will these connectors cost for the consumers and taxpayers?

However before discussing this, an independent assessment of the benefits, and also, any potential risks, of the proposed new wind farm, needs to be made.

In their submission, UPC Renewables provides an analysis that states:

UPC has done its own analysis of 5 minute NEM data for 2017 which demonstrates that the correlation between operating Victorian and Tasmanian wind farms is very low (i.e. R- Squares below 0.2 in most cases — refer Table 3 appended See Figure 2 below). This points to the value of development in geographical diverse locations to minimize coincidently high or low output and hence avoid the issues that coincident generation or lack thereof brings.”

The key point in the above quote is the use of the term “correlation”. A correlation coefficient ranges from +1 to -1 or 100% to -100%. The UPC quote above and their table quoted there refers to the correlation coefficient as “R-Squares”, or “r2“. How or where does this r-squared term arise? The question arises because “R-Squares” is not a term in normal usage as a correlation coefficient[2].

A second point about looking at correlations among the outputs of these wind farms is that the energy generated as a function of time needs to be examined in detail as there may well be low correlations but nonetheless swings in energy output of any of the wind farms, even large swings, may occur, being not necessarily made apparent by the correlation analysis alone.



Robbins Wind farm, Tasmania, Musselroe, Bald Hills,

Figure 2: Extract from Table 3 appended to the UFC document. The table shows correlation values for the wind farms shown in Figure 1.and the average values for the 35 wind farms examined.

Given that there are ambiguities arising from the form of the UPC renewables statement as per the quote above, the rule in any such potential for confusion is: look at the data.

Correlations among selected Wind Farm outputs

The 5 minute NEM data for 2017 has been obtained from the AEMO website and Figure 3 shows the 5 minute variations for the month of July 2017 for Woolnorth and Bald Hills. Figure 4 shows Woolnorth and Musselroe. These wind farms are about 250 km apart from each other.



Wind farm, graph, Woolnorth, Bald hills, 2019.

Figure 3: 5 minute variations for the month of July 2017 for Woolnorth and Bald Hills.



Wind farm, Graph, Woolnorth, Musselroe output.

Figure 4: 5 minute variations for the month of July 2017 for Woolnorth and Musselroe.



The correlation coefficient for Woolnorth against Bald Hills is 57 +/-  1 % and the value for Woolnorth against Musselroe is 54 +/- 1%. The error is so small as there are between 8,000 and 9,000 5 minute values for each wind farm.

But if you square these July correlation coefficients you get 32% for Woolnorth against Bald Hills and 29% for Woolnorth against Musselroe !

The full analysis of the 5 minute data is given in Table 1. The UPC quoted values are the squares of the correlation coefficients.

Table 1 Comparison of correlations coefficients

Month 2017

Woolnorth Bald Hills 2017

Woolnorth Musselroe

2017



Bald Hills Musselroe

2017

January

61%

25%

10%

February

47%

38%

25%

March

14%

14%

21%

April

54%

40%

29%

May

71%

52%

46%

June

81%

74%

61%

July

57%

54%

56%

August

65%

68%

56%

September

77%

65%

69%

October

65%

21%

36%

November

32%

24%

2%

December

43%

35%

25%







Year 2017

56%

45%



40%





UPC r2 value

32%

20%

16%

UPC r value

57%

45%

40%



Should this usage be in fact what UPC Renewables has chosen to offer in their presentation of the apparent correlations in wind farm output? It does pose one potential disadvantage for the case that they are presenting. The squaring of the correlation coefficient, remembering that the real, non-squared, value is across a range [-1, +1]), has the apparent advantage that, indeed, it results in a smaller numerical value An example from the table above gives the real value of the correlation coefficient (the bottom row of the table) is 57% or 0.57. Squaring this yields the value of 0.325, apparently a low value for the “correlation”. However, a possible value of -0.57, would have been much more supportive of the argument that UPC Renewables is trying to advance, then squaring this latter value to get +0.325.

However, the actual data show no negative correlations for the full year of 2017 (Figure 5).

Victorian wind power, output, June 2019, Graph.

Figure 5:  Full year correlations of Woolnorth against all other wind farms for 2017



In the event, the fact remains that the correlation is positive, and is significantly higher overall than the UPC Renewables paper would seem to suggest.

So what performance might be expected from this new wind farm?

Robbins Island is some 25 km from and immediately to the east of the Woolnorth wind farm so its performance should be similar. As an example, in South Australia, two wind farms, whose latitude and longitude data are separately published, North Brown Hill and Hallett 2, are 35 km apart and their correlation coefficient for the year 2017 is 85%. That is, their respective outputs are seen to track each other fairly closely. Therefore, given that the proposed Robbins Island wind farm would be even closer to Woolnorth than the 35 km that separates these two South Australian wind farms, it can be expected that, if anything, the output of the proposed Robbins Island wind farm would track that of Woolnorth even more closely.

So it is possible to model the Robbins Island contribution to Victorian wind farm supply by scaling both Woolnorth and Musselroe to 1000 MW as the behaviour of the Robbins Island wind farm. Table 2 show the contributions increase the intermittency. Figure 6 is an example of potential Victorian wind farms correlation to Robbins Island from Woolnorth scaled to 1000 MW.

Table 2: Victorian wind farm performance with added supply from Robbins Island

Wind farms

Correlation with Victoria

Capacity including “Robbins Island”

Annual average MW

Capacity factor

Mean 5 minute changes MW

% of changes over 100 MW

Maximum change MW

Victoria



1408

403

29%

10

0.13%

252

Woolnorth

47%

2408

802

33%

26

3.09%

941

Musselroe

24%

2408

774

32%

19

1.06%

964



Victoria, Robbins Island, correlation, wind output, graph, 2019.

Figure 6: 5 minute variations for the month of July 2017 for Victorian wind farms and Robbins Island scaling the performance of the Woolnorth wind farm to 1000 MW

Extent of the swings in total wind farm output

What has become a clear issue in the deployment of so much in the way of the ever-increasing proportion of the total installed capacity of both wind farms and solar PV installations is both the inherent intermittency of these forms of generation, and their virtually complete lack of a contribution to that all-important component of generation, system inertia, that is so important to the grid’s ability to deal with the stress of unexpected transients, such as that due to lightning strikes, loss of generation and bushfires passing under major transmission lines.[3]

One of the tasks required of the professional engineer in developing any proposal is the requirement to properly examine any and all likely worst-case scenarios.

The determination of a correlation index as performed by UPC Renewables does not address the matter of volatility in any way whatsoever. That volatility in the output of wind farms is clearly a concern can be seen by an examination of the total wind farm output on the Eastern Australian grid for virtually any month of the year. That for June 2019 is reproduced as Figure 7 below as a typical example.



Wind energy production, June, 2019, Australian, NEM, graph.

Figure 7 Total Wind Farm output of all AEMO-registered wind farms on the Eastern Australian grid for the month of June 2019[4]


The figure shows numerous occasions where deep minima in the output occur. Remember, this is the output of the total wind farm fleet. This also raises doubts about the UPC correlation analysis as recorded wind output varies by a factor of 10.

Clearly, if this supply were the only source of generation, then multiple grid-wide blackouts would have occurred during this month of June 2019 alone.

We need to keep very firmly in mind that supply and demand on the grid must be maintained in second-by-second balance. If the balance is not maintained 24/7, grid collapse, (the technical term for widespread blackouts), very quickly follows.

Now, let’s talk about the acceptability or otherwise of grid-wide blackouts. Remembering that a grid-wide blackout that lasts even a few hours can have catastrophic and even tragic consequences, and also remembering that the required “black start” after a grid-wide collapse may take several days to enable restoration of power, clearly a grid-wide failure occurring at any time is totally unacceptable. That this is so was a message brought home loudly and clearly to the British authorities after the occurrence of a widespread, very disruptive blackout on Friday, 10 August last. See, for example, the coverage in the Daily Mail.[5]

We may safely conclude then, that a grid-wide blackout, at a frequency of even just one in every ten years, is totally unacceptable.

So, what does the possibility of grid-wide blackouts have to do with the choice of whether or not to build a great, big, new wind farm, in northern Tasmania, the largest so far to be installed in Australia?

The clue can be found in an examination of either or both of the outputs of the Woolnorth and Musselroe wind farms shown in Figure 4. Each exhibits swings in output across the full range of its capacity, Woolnorth’s for example varying from zero to near its full installed capacity of 140 MW and back, and similarly Musselroe varying over its full capacity from zero to 168 MW. Furthermore, figure 4 shows that both wind farms vary in their output over their full range very frequently, if seemingly chaotically and frequently the swings over their full range occur quite rapidly. What is interesting is that the higher capacity factors demonstrated in the Tasmanian wind farms simply results in power excursions over the full installed capacity rather more frequently than might occur in lower capacity factor wind farms of mainland Australia. Maintaining control over the grid is a challenge where such uncontrolled variations are occurring, particularly where multiple generators are involved.

We can be quite certain then that should the Robbins Island facility be built then the grid operator will have to deal with an additional wildly swinging input varying from zero to 1000 MW and back, virtually fully correlated with the wild swings of the Woolnorth (and Bald Hills) wind farm. Without the building of a new 1000 MW gas-fired power station purpose built to back up this new wind farm, continued control of the Eastern Australian grid would be hugely challenging, if not impossible, to achieve.

Conclusion

Our analysis of the correlations among the various wind farms shows that the proposed wind farm at Robbins Island would add a very large additional highly variable, intermittent, supply that is positively correlated with the existing wind farm supply. As a result, any wind farm built at the Robbins Island location will merely add a large chunk of additional instability to what is an already increasingly unstable Eastern Australian grid. This instability is due to the inherent intermittency in the output of all wind farms and solar PV installations. As with all these other intermittent sources of generation, any such wind farm will also fail to provide the very necessary synchronous inertia provided by conventional dispatchable plant, inertia that protects the grid from the sudden shocks induced by such events as already mentioned. This second shortcoming is of concern if the Robbins Island wind farm is considered to be some sort of replacement for any coal-fired power station, to which UPC Renewables allude in their submission.

The sheer scale of the installed capacity of this proposal then should give cause for grave concerns for the continued operational stability of the Eastern Australian grid should it proceed.

Furthermore, our analysis shows that any suggestion that the building of wind farms at other sites in Tasmania would contribute the desirable output negatively correlated with that from wind farms in mainland Australia would require rigorous analysis before any confidence could be given to any such claim.

The development of the Robbins Island wind farm comes in two parts. The first stage of the farm would be a 500 MW installation. A transmission line would be needed to deliver the electricity to the Basslink station near Launceston. The second stage would add a further 500 MW and would require a second Basslink cable.

The impact would be experienced in Victoria as the wind farm output under the RET scheme has entry at zero bid price so receives the price set from the bid stack along with REC payment. Victoria already has some 4,000 MW of proposed or approved wind farms that will come into operation over the next five years. A further 1,000 MW will simply add to an already overloaded renewable intermittent energy supply.

This development by a supplier outside Victoria where there are limited interconnectors to other states shows that there is no effective planning for the development of electricity supply on a national scale.
